Le Cache Mission 1400 Provincial #883

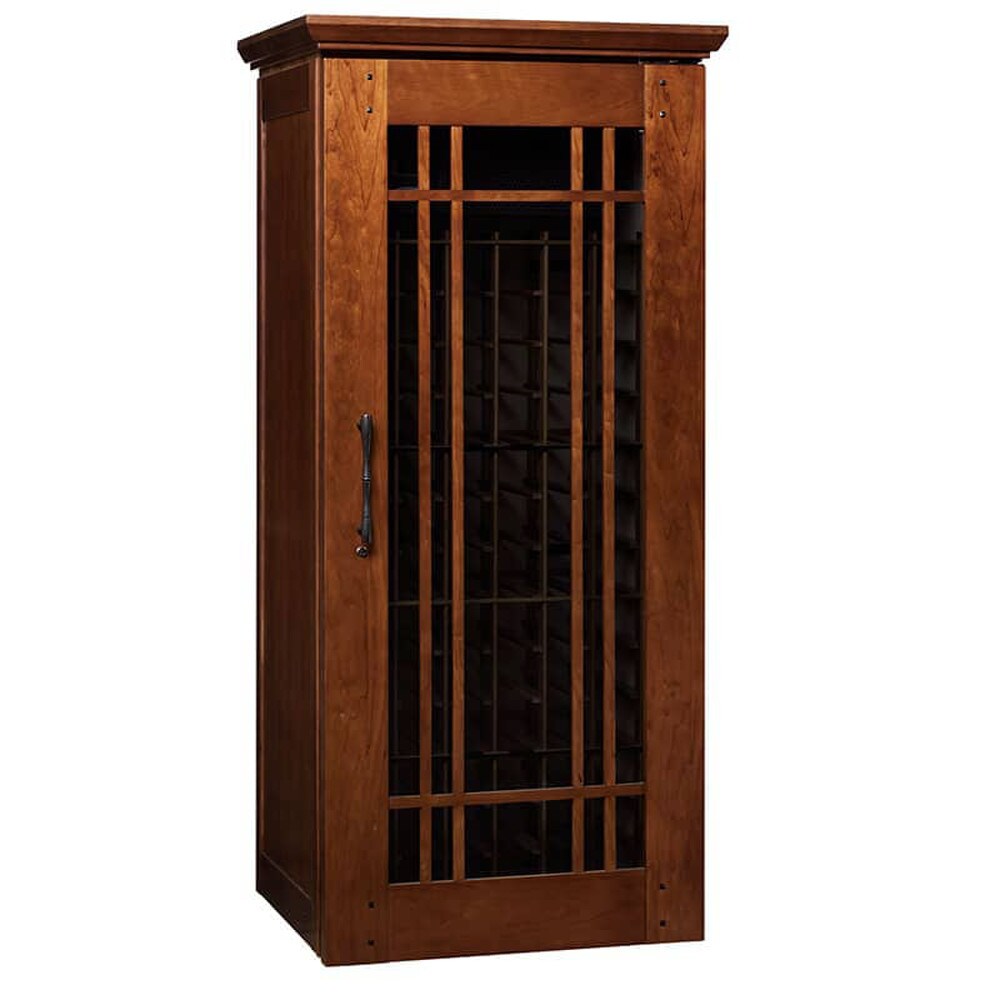

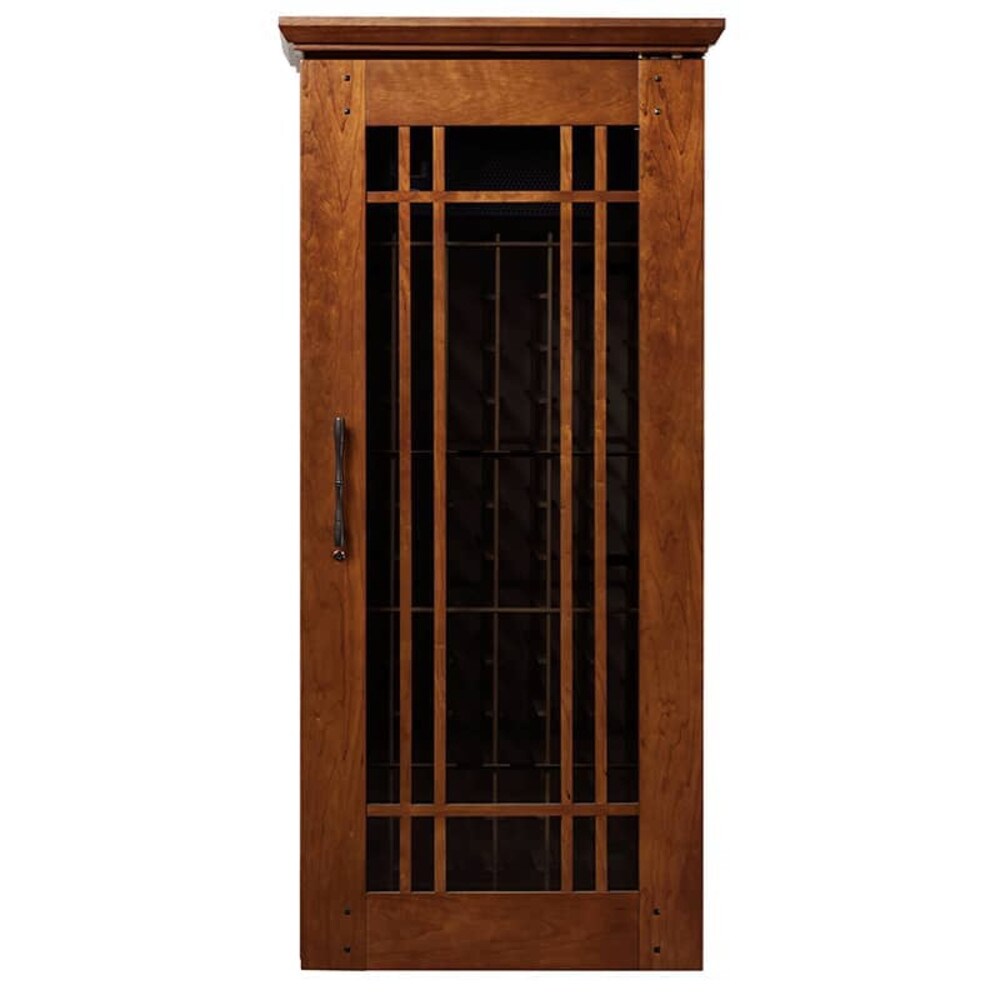

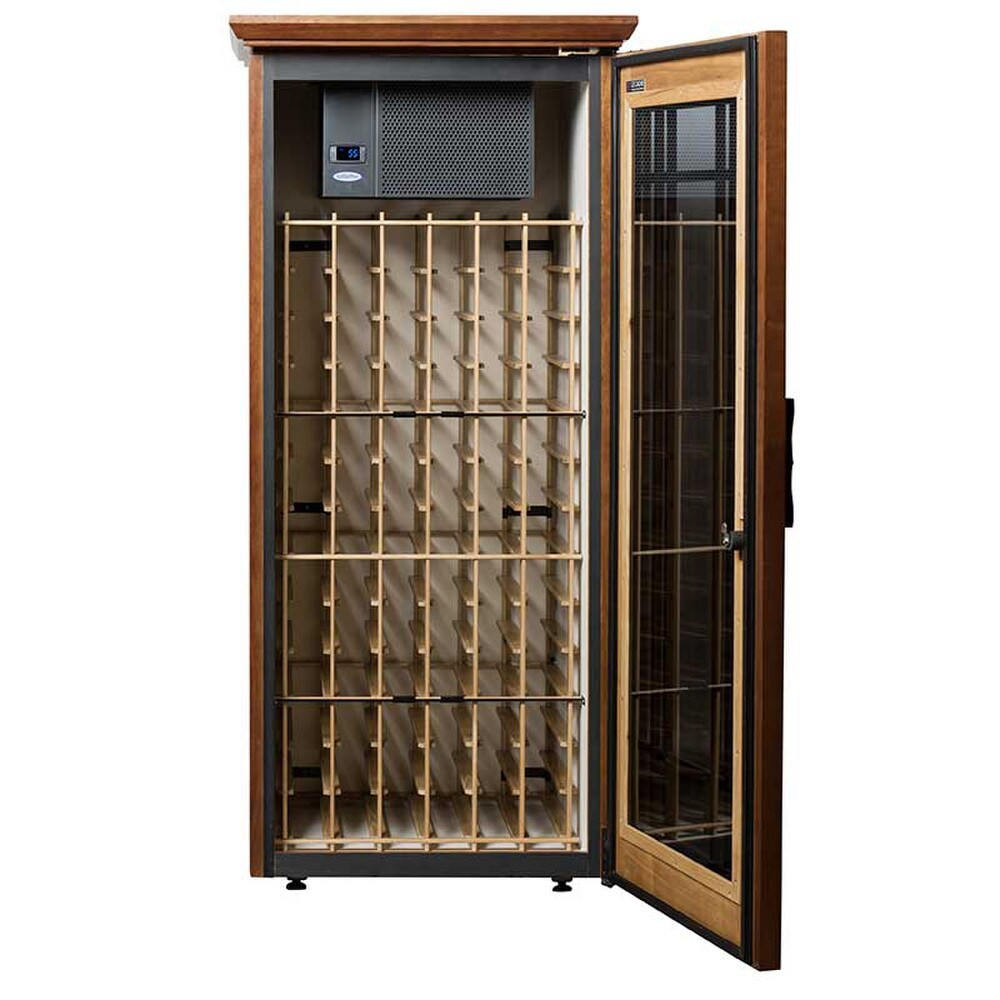

Le Cache Mission 1400 Wine Cabinet Provincial Cherry (P/N 883). Designed by Berkeley Mills, an acclaimed Bay-area designer of high-quality artisan furniture, our Mission Series wine cabinets combine straight lines and beautiful wood grains to achieve the timeless beauty of fine arts & crafts furniture. The Mission 1400 is perfectly sized for beginning wine collectors, and features a window with engineered wood mullions, crown molding and hand-carved detailing. Engineered to create optimal storage conditions for protecting and preserving fine wine collections using advanced CellarPro cooling units, the Mission 1400 provides digital temperature and adjustable humidity control while offering advanced protection from harmful UV rays and vibration inside the wine cabinet. Every wine cabinet from Le Cache features all-wood Interlock racking that will accommodate large-format bottles, such as Burgundy, Pinot Noir and many Champagne bottles. Premium wood veneer and choice of hand-stained finishes is included.
We also offer an extended warranty with enhanced coverage for our wine cabinets and cooling units.
- Capacity: 172 bottles
Double Deep storage
Racked Slots: 160 bottles (3.8 inch slots)
Bulk Space: approximately 12 bottles (stacked)
- Sizing: noinfofound
NOW WITH THE MOST ADVANCED COOLING UNITS FROM CELLARPRO!
Straight lines and beautiful wood grains combine to achieve the timeless beauty of fine arts & crafts furniture.
- Premium Cherry wood veneer
- Hardwood doors and ebony accents

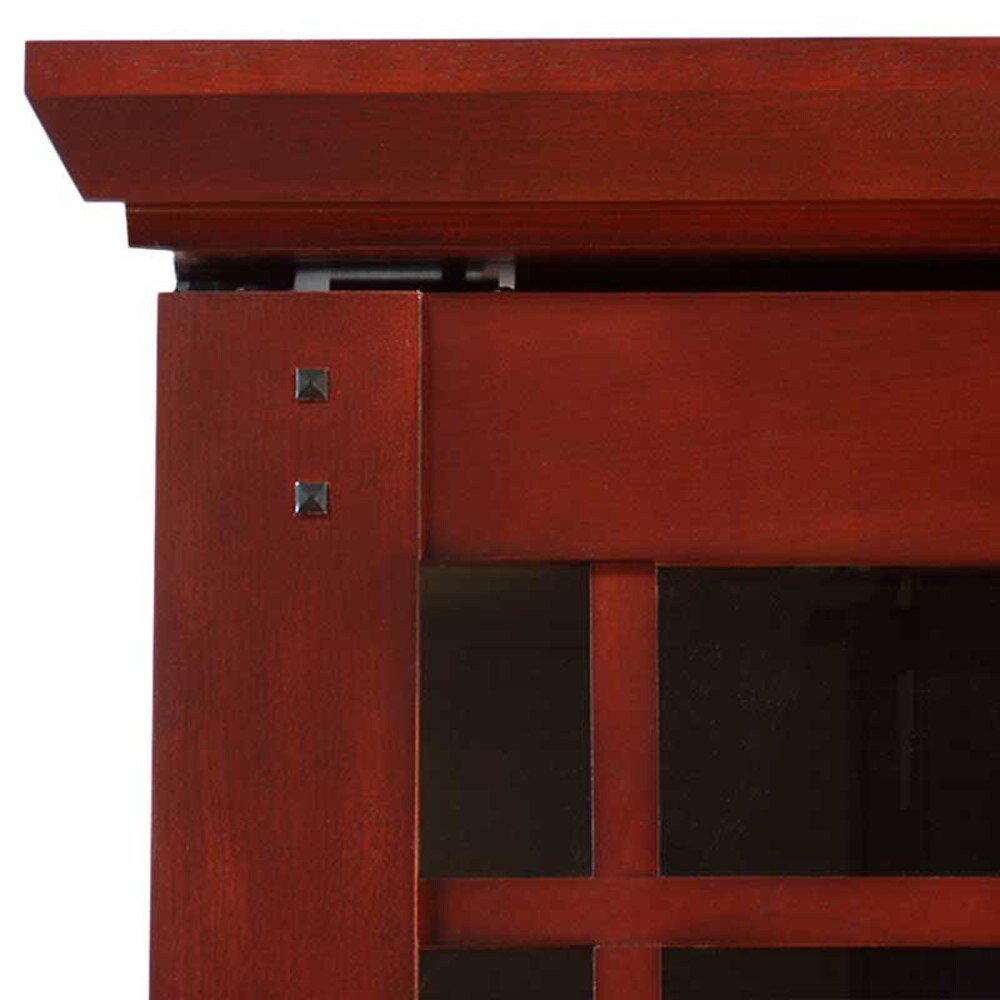

- Crown molding and hand-carved wood trim

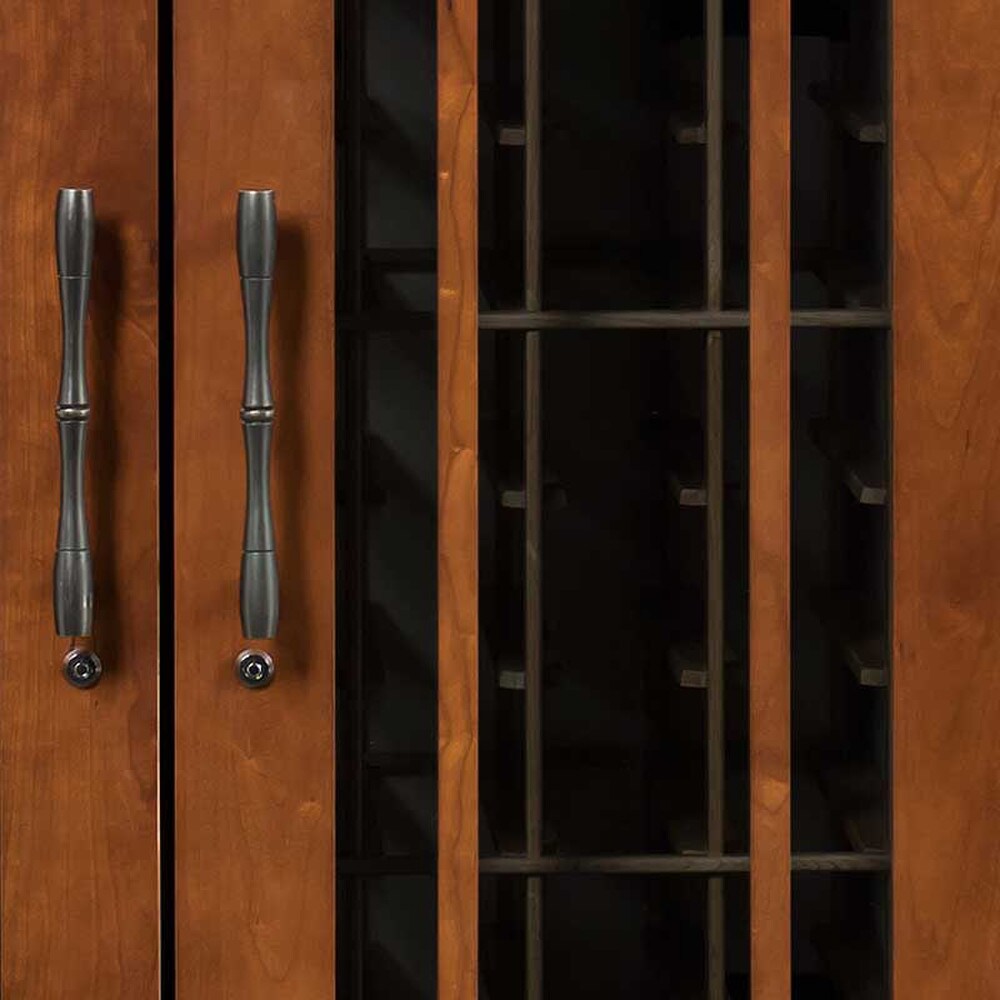

- Pewter pulls and security locks
- Double-pane tinted glass
- Engineered wood mullions
- Foil-backed polyisocyanurate insulation
- CellarPro energy-efficient cooling unit (made in USA)
- Electronic Thermostat and Digital Display
- Adjustable Humidity Control
- Energy-Saver and Quick-Chill Modes
- Audible and Visual Alarms
- SB/0™ Technology - Flush against the Wall
- Top-vent exhaust
- High Performance Air Filtration System

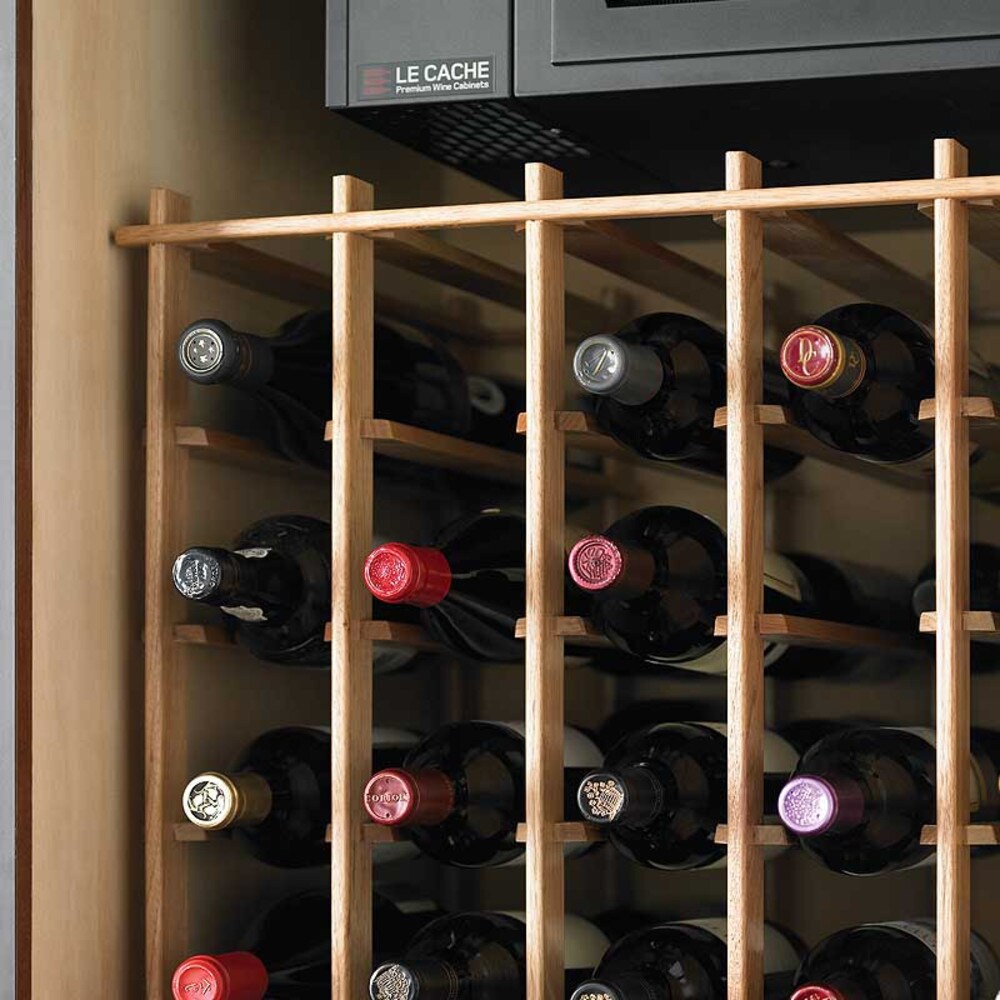

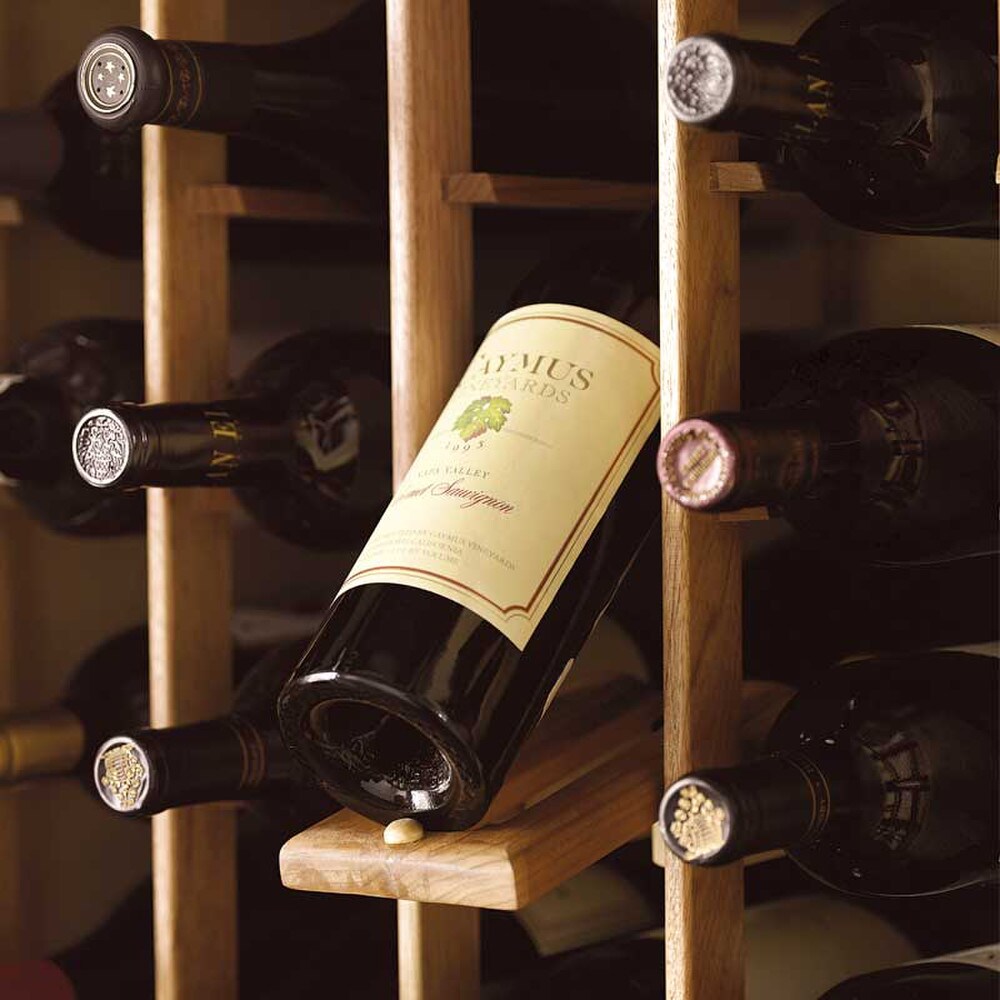

- All-wood Interlock racks
- Universal racking fits oversized bottles
- Low-heat interior light
- Optional bottle probe
- Five-year warranty on the cooling system
- Two-year warranty on entire cabinet
- Optional Extended Warranty
- In-stock items ship within 5-7 days

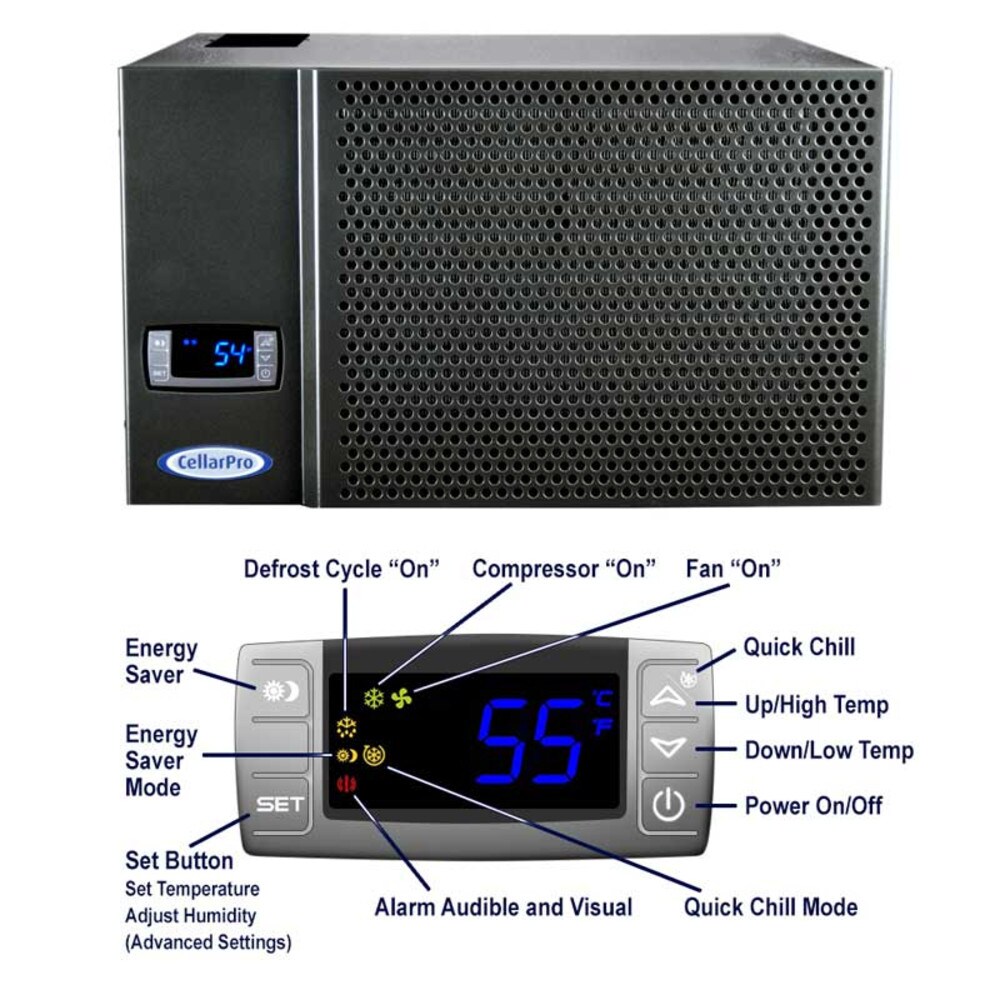

COOLING UNIT OVERVIEW
All wine cabinets from Le Cache come with a choice of 3 energy-efficient CellarPro cooling units
included in the price of the wine cabinet. The 3 CellarPro cooling units are dimensionally sized exactly alike, and therefore they are interchangeable. However, the 3 cooling units differ in terms of their BTUH cooling output and the level of noise that they produce. Each of the 3 cooling units is discussed below.
For more information about sizing the best cooling unit for your cabinet, refer to our Cooling Unit Buying Guide for Wine Cabinets.
The 1800QTL-ECX is our quietest cooling unit
, and is designed exclusively for residential use
in a temperature-controlled
environment. The 1800QTL-ECX is appropriate for all credenzas, Model 1400 and Model 2400 wine cabinets
. It also can be used in larger Model 3100, Model 3800 and Model 5200 wine cabinets, provided that the desired cellar temperature is closer to 60F than 55F.
This unit should not
be used in ducted applications, or paired with our front duct hood. Key Stats
: 1065 BTUH at 55F, 41 dbA installed in a cabinet.CELLARPRO 1800QT-ECX
The 1800QT-ECX cooling unit is approximately 30% more powerful and 4 decibels louder than The 1800QTL-ECX cooling unit. It is designed for residential use
in a temperature-controlled environment
. The 1800QT-ECX easily can maintain 55F in our largest wine cabinets
This unit can be used with our front duct hood.Key Stats
: 1380 BTUH at 55F, 45 dbA installed in a cabinet.CELLARPRO 1800XT-ECX
The 1800XT-ECX is approximately 5% more powerful and 3 decibels louder than The 1800QT-ECX cooling unit, because it uses more powerful fans. As a result, The 1800XT-ECX is ideally suited for garage environments
(with temperatures ranging from 40F to 95F), commercial environments
(where the cellar is frequently accessed) and installations with our front-duct hood.
: 1456 BTUH at 55F, 48 dbA installed in a cabinet.CELLARPRO 1800XT-ECX
1800XTS-ECX cooling units, approximately 30% more powerful than 1800XT-ECX cooling units, also can be used inside Le Cache wine cabinets for an additional charge. Please call us at 707.794.8000 for more information and/or to order.
PLACEMENT REQUIREMENTSPOWER REQUIREMENT
The cooling unit plugs into a standard wall outlet, and the outlet should be on a dedicated circuit
. The components of the cooling unit draw 3 amps, and the electric outlet on the side of the cooling unit also is rated for 3 amps. The cord extends 6 1/2 feet from the back of the cabinet. If an extension cord is used, it should be 14-gauge wire or thicker, grounded, and as short as possible. We recommend using a surge protector rated at 15 amps or more. Under no circumstances should the wine cabinet share a circuit with another motor or compressor-based appliance, like a wine cooler, fridge or air conditioner. FLOOR SURFACE
Because of the significant weight of your wine cabinet, it is important that it be placed on a hard surface, otherwise the cabinet may become skewed if the doors settle unevenly over time. If you will be placing your cabinet on thick
carpeting, consider placing a carpet board underneath the wine cabinet. You can purchase a carpet board from Le Cache, or you can have your local hardware store cut a 3/4 inch plywood board to the following dimensions: 26.5w x 25d DOOR SWING CLEARANCE
The doors of our wine cabinets swing "wide" by approximately 1 inch when open at 90 degrees. The additional width should be accounted for when purchasing cabinets that do not have moldings, because the stated widths of our wine cabinets do not account for the door swing. Please note that the additional width is required in front of the cabinet. WEIGHT LOAD FACTOR
After loading your wine cabinet with wine bottles, it will be extremely heavy. When selecting a location for your cabinet, make sure that the floor underneath is strong enough to support the weight of the cabinet. TEMPERATURE REQUIREMENTS
CellarPro cooling units are designed to handle temperatures ranging from 50 to 95F. VENTILATION REQUIREMENTS
The cooling unit generates hot air that must be exhausted in such a way that it won't be recirculated by the cooling unit. If the hot air cannot be dissipated or channeled properly, and the cooling unit is forced to recycle its own hot air, the cooling unit will be unable to maintain cold temperatures inside the wine cabinet and/or will overheat and/or will run all the time. Proper ventilation can be achieved in one of three ways: 1. UPRIGHT CABINETS WITH TOP-VENT CONFIGURATIONS
wine cabinets have been engineered top-vent cooling units and SB/0 Technology so that they can be placed right up against the wall. In this configuration, the hot air generated by the cooling unit is ventilated through the top of the wine cabinet, and the return air comes from above the wine cabinet, so there must be above and to the sides of the cabinets for the hot air to dissipate, as follows: 2. UPRIGHT CABINETS WITH Rear-Vent Configurations
wine cabinets can be configured so that the return air comes from behind
the wine cabinet. This configuration is useful in situations where sufficient clearance around the wine cabinet doesn't exist. In this configuration:
3. UPRIGHT CABINETS with Front-Vent Hoods
- If the rear of the wine cabinet is not accessible, a minimum clearance of 7 1/2 inches above the wine cabinet is required for removal and replacement of the cooling unit air filter.
- If the rear of the wine cabinet is accessible, a minimum clearance of 3 inches above the wine cabinet is required for proper airflow, and we recommend using our air deflector to direct the hot air exhaust to the left of the wine cabinet.
- In all cases, the wine cabinet must be placed 3-4" away from the rear wall.
- The sides always need to be open - in other words, placement in a corner, enclosed space, alcove or closet will not work without our front-vent hood (see Configuration 3 below)
If you want to place the wine cabinet flush against the wall but you don't have the required clearance (as outlined in Configuration 1 above), or you want to place the wine cabinet in an enclosed space, closet or alcove, our front-vent hood (placed on top of the wine cabinet) can be used with 7 1/2 inches of clearance above the wine cabinet for removal of the hood and the air filter. Please note: 4. CREDENZA WINE CABINETS Credenza wine cabinets
don't require any clearance above
the wine cabinet; however, all credenzas require 3-4" of space behind
the wine cabinet because all the ventilation (intake and exhaust) occurs behind the cabinet
How do I choose between top intake versus rear intake?
Top intake will allow you to place your wine cabinet flush against the wall; however, in order to operate properly, a cabinet with top intake MUST have sufficient clearance ABOVE the cabinet. If sufficient clearance does not exist, rear intake should be selected, and 3-4 inches of clearance must be provided BEHIND the wine cabinet. Regardless, the sides of the cabinet always need to be open - in other words, placement in an enclosed space, alcove or closet will not work unless our front-vent hood is used. Click on our placement requirements tab for more information.
Does the unit really need a dedicated circuit?
A: Yes, our units require dedicated circuits. When we say "dedicated circuit", we mean that the circuit shouldn't have any items that require heavy draws of electricity - eg other appliances, vacuum cleaners, big-screen TVs, blow-dryers - on the same circuit as the cooling unit. Lighting, computers or other low-draw items shouldn't be a problem on the same circuit.
Do I need the condensate drain line?
A: You don't need the drain line because our wine cabinets are constructed to be airtight when the doors are closed, and the cooling unit has a drain pan to catch excess condensation, which is burned off as the cooling unit runs.
Why does the fan run without the compressor?
A: We've programmed our fans to stay "on" for 3 minutes after the compressor turns "off", and then every 15 minutes thereafter , to recirculate moisture inside the cabinet. This fan cycle is extremely energy efficient, and increases the humidity inside the cabinet.
