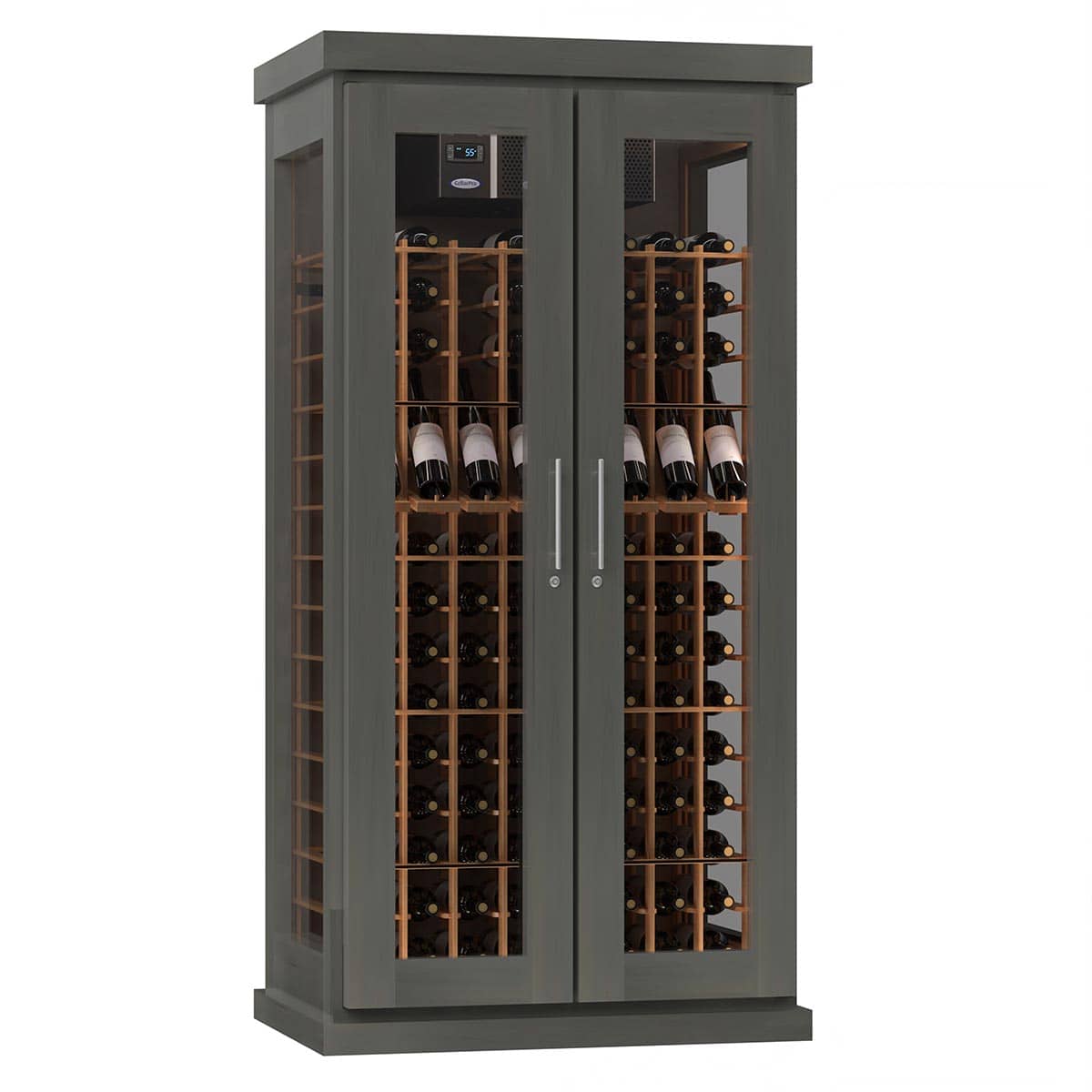

Le Cache Gallery 2400 Shale #36958

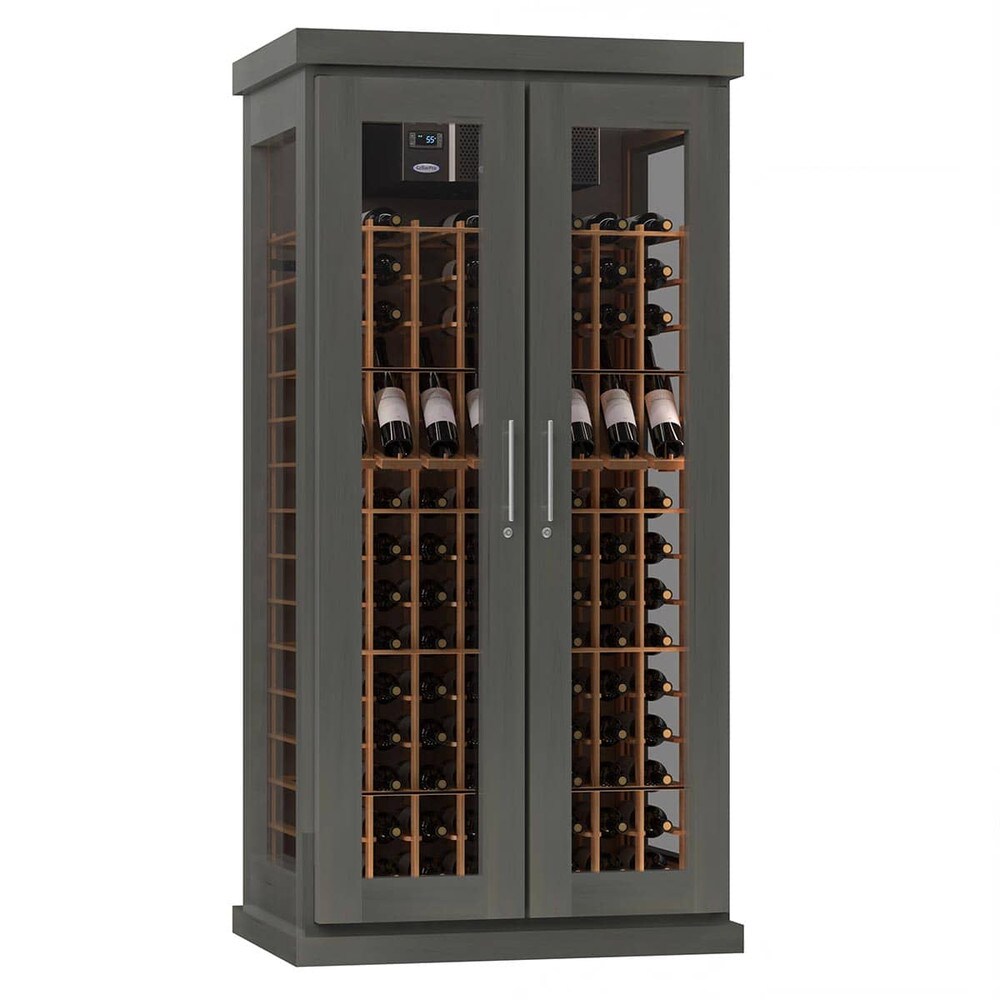

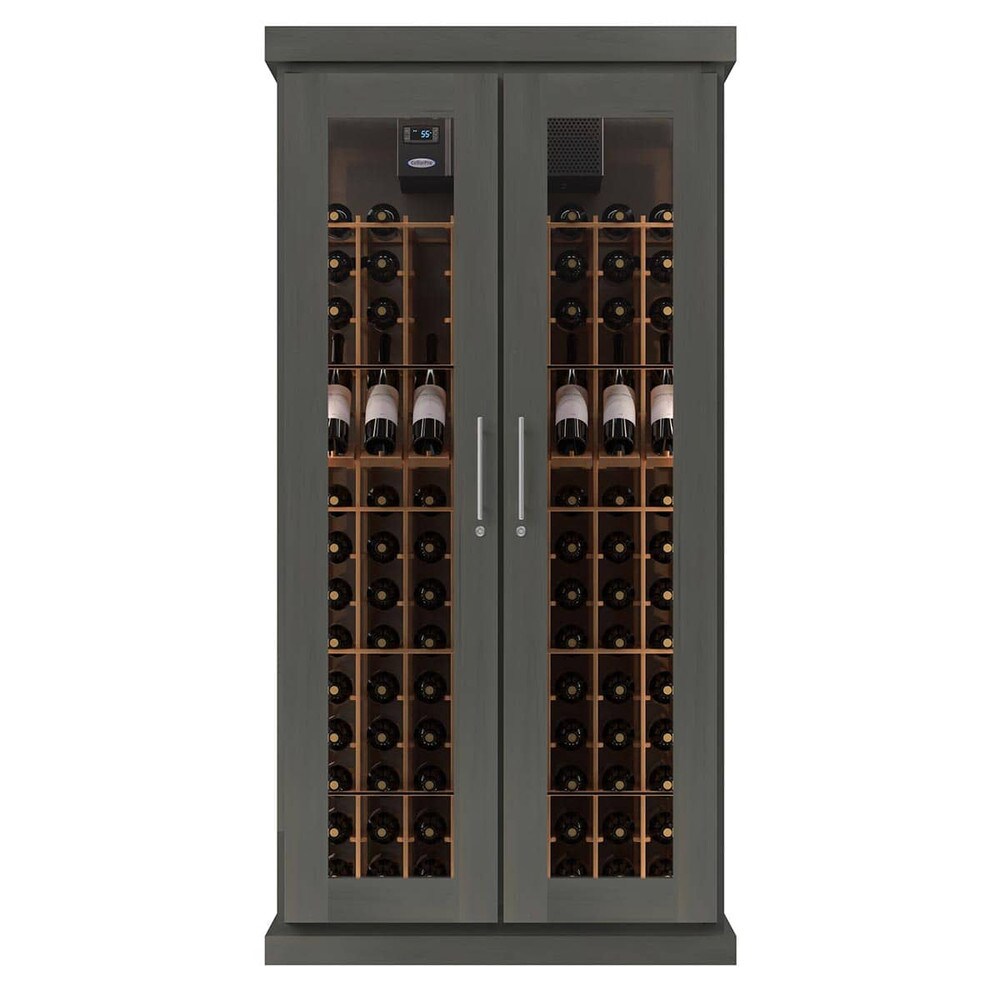

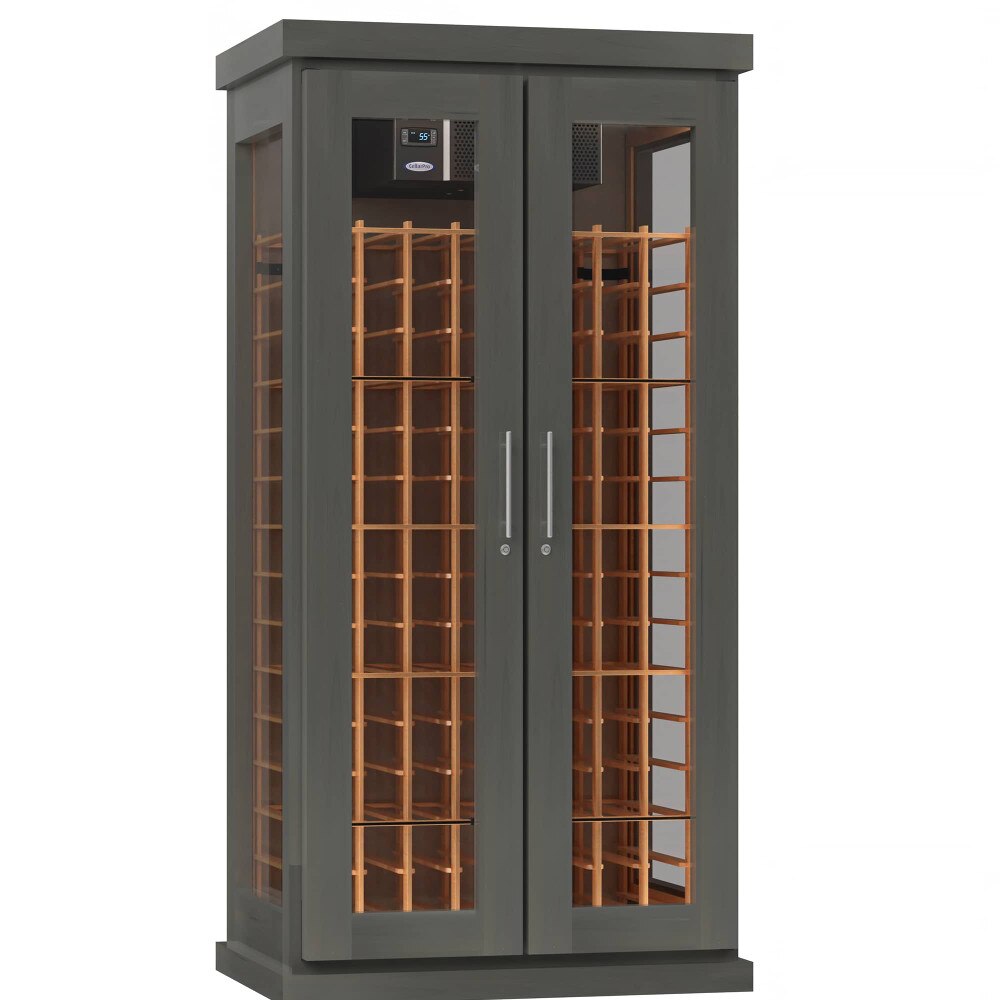

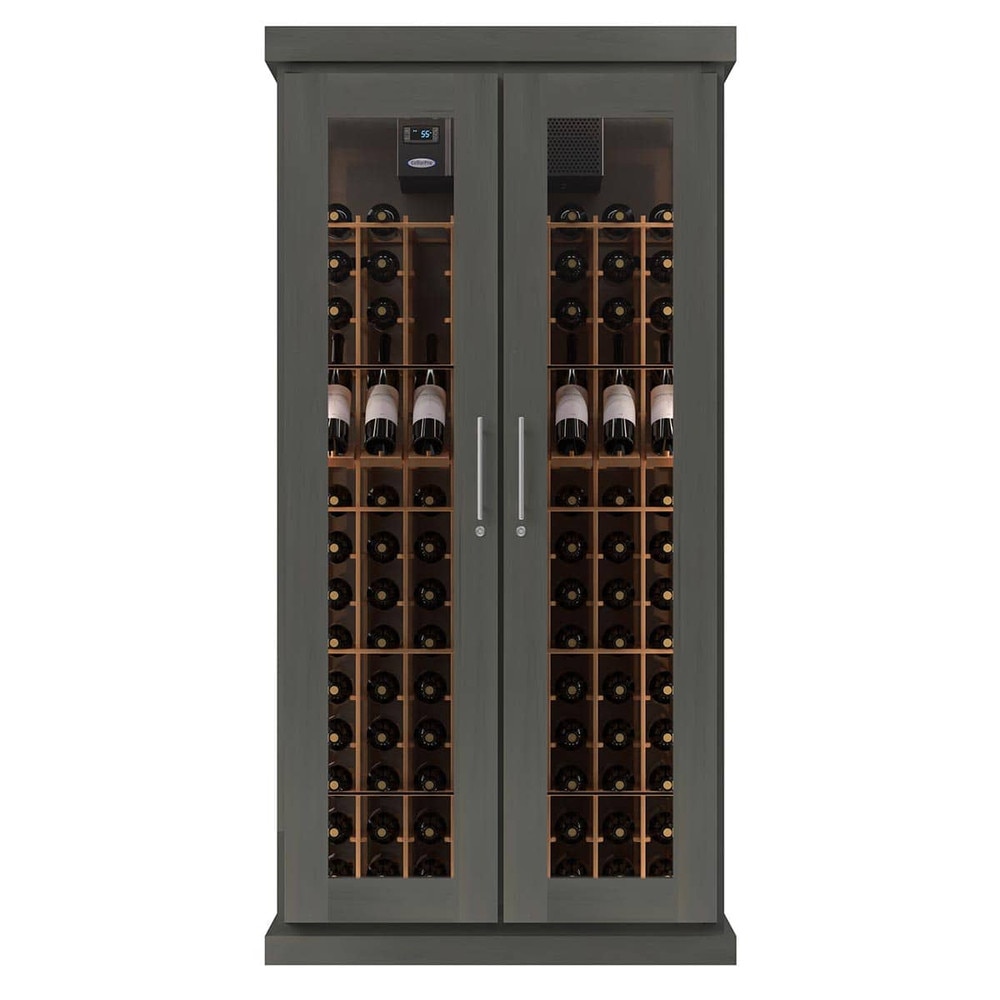

When a collection has grown past the point where a kitchen cooler or closet conversion can do the job honestly, the Gallery 2400 in Shale is where most serious collectors land. At 286 bottles across double-deep racked and bulk storage, it holds enough to matter without requiring a dedicated cellar room, and the double-pane tinted glass on both the doors and sides means the cabinet reads well from every angle in a dining room, study or finished basement. The CellarPro cooling system is what actually separates this from a wine cooler — it manages both temperature and humidity with digital precision, which is a meaningful distinction for anyone aging Bordeaux or Burgundy beyond the near term.

Best For

• Moving a 200–300 bottle collection out of a repurposed closet or undercounter cooler into conditions that support actual long-term aging

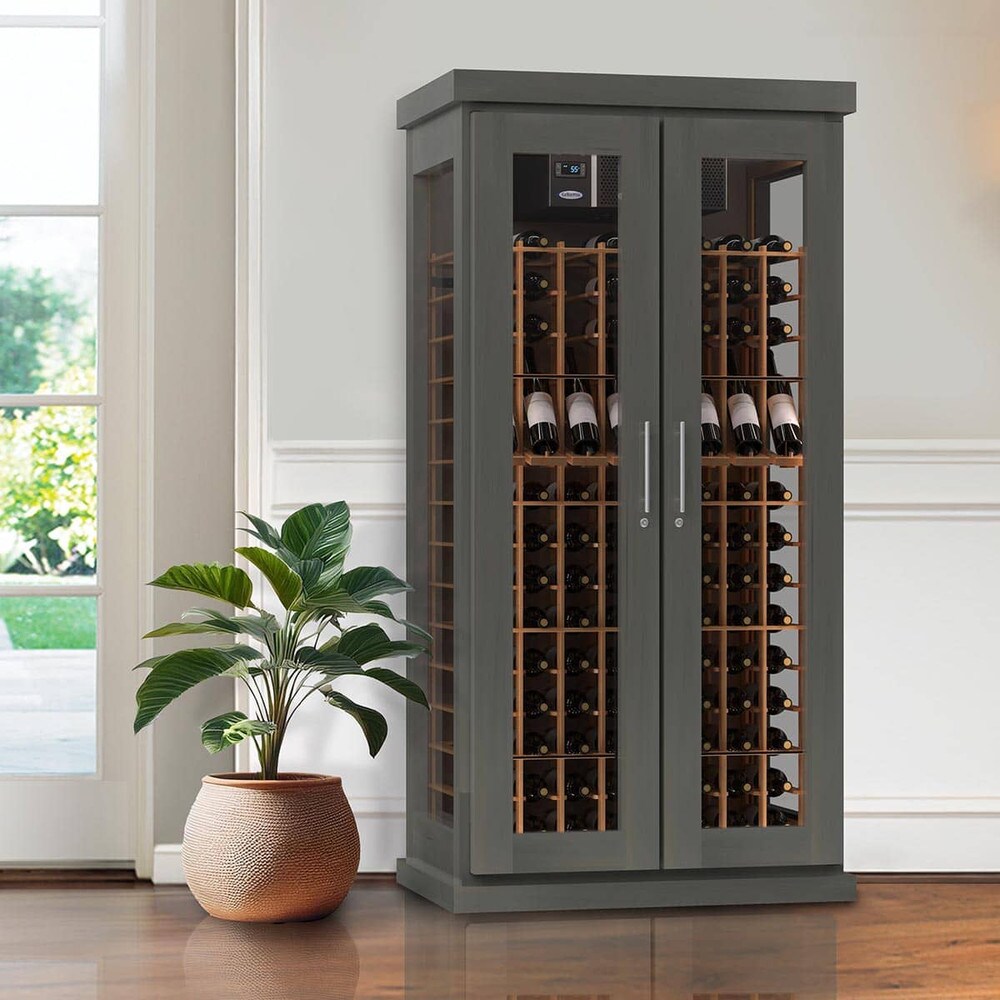

• Installing in a finished living space where the unit needs to look furniture-quality from the front and the sides, not just the front
• Collectors storing mixed formats — the 3.8-inch universal rack slots accommodate oversized bottles like Burgundy and Champagne alongside standard Bordeaux without modification
• Placing flush against a wall in a room where clearance is limited, using the SB/0™ top-vent exhaust design that requires no rear spacing

• SB/0™ Technology with top-vent exhaust: The cooling unit exhausts heat through the top of the cabinet rather than the rear, so it can be positioned flush against a wall with no rear clearance required. Useful for tight built-in alcoves or basement installations where wall clearance is limited.
• Active humidity management: Unlike wine coolers that control only temperature, the CellarPro unit actively maintains both temperature and humidity. The adjustable humidity control lets you dial in conditions for long-term aging rather than relying on passive moisture retention.

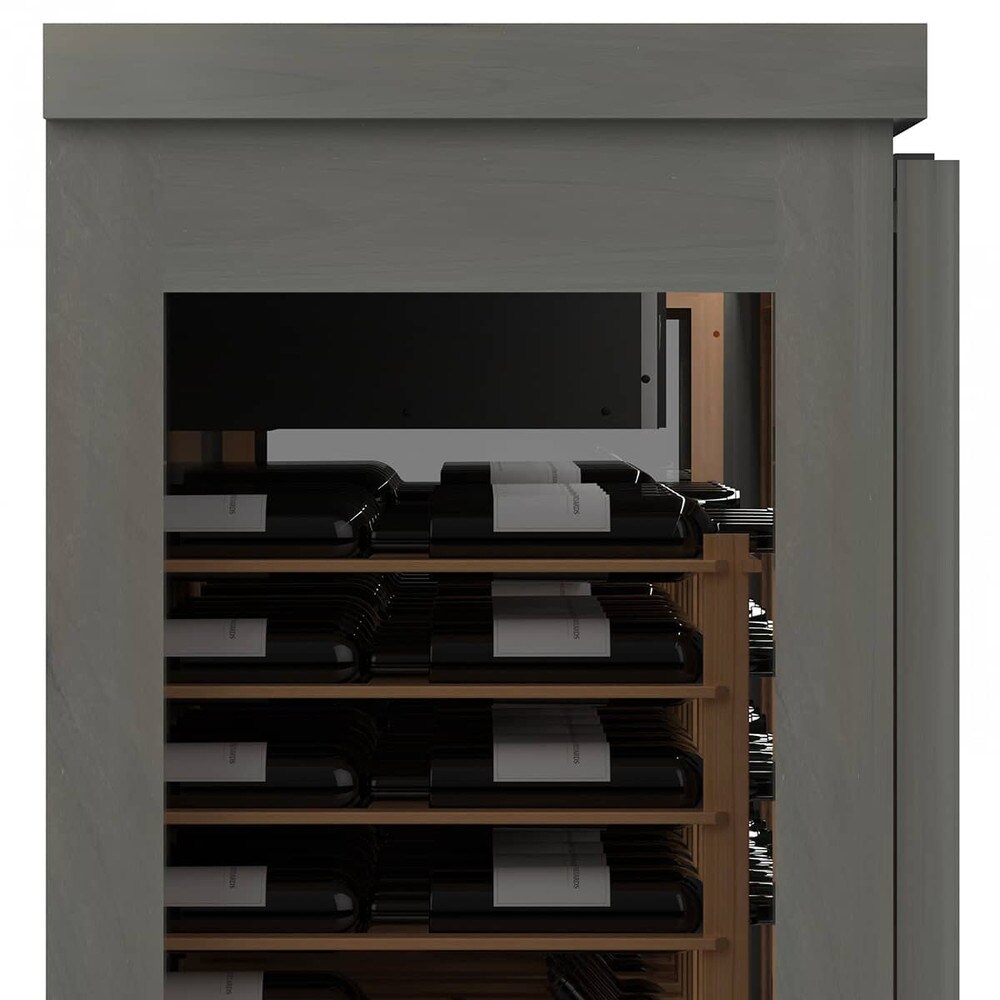

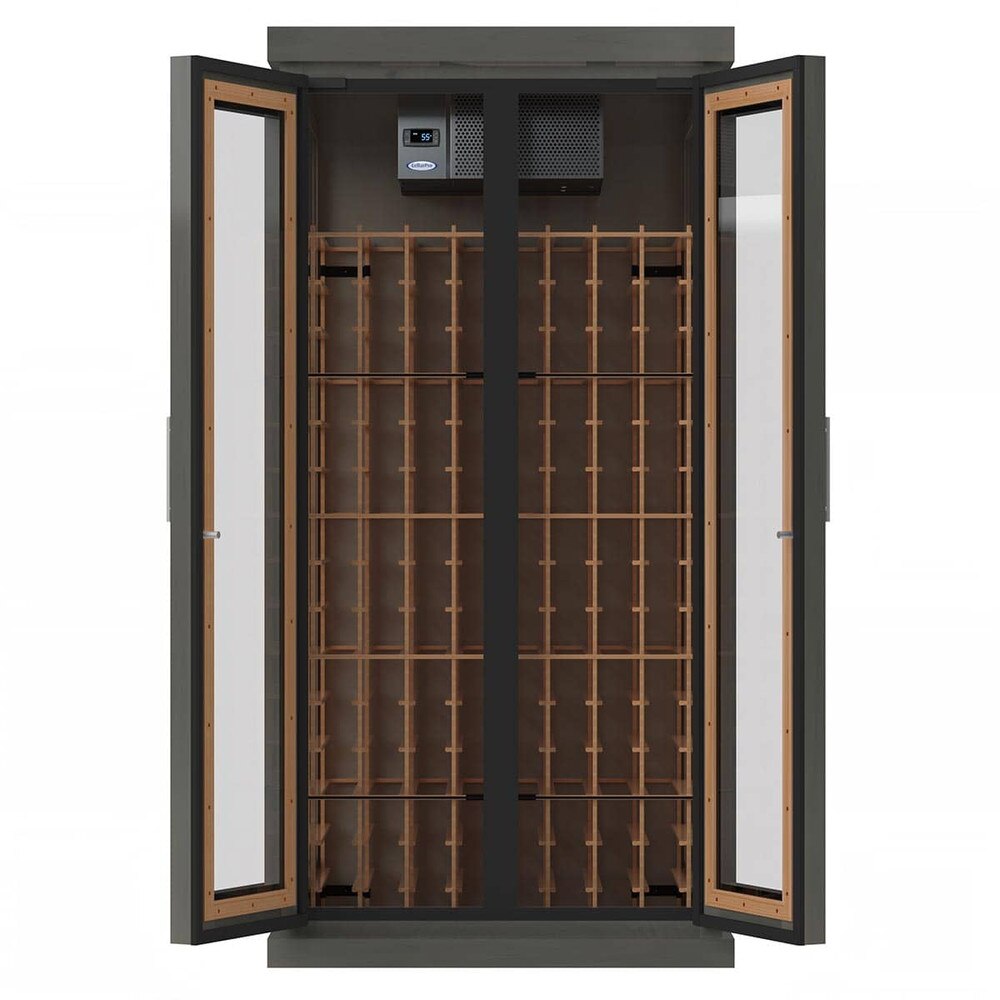

• Double-deep racking at 3.8" slots: 256 individually racked slots sized to fit standard Bordeaux and Burgundy bottles as well as many oversized formats. An additional ~30 bottles can be stacked in the bulk storage section below, for a total rated capacity of 286 bottles.
• Foil-backed polyisocyanurate insulation: Higher R-value per inch than standard polyurethane foam, reducing thermal load and the frequency of compressor cycling - which matters for long-term mechanical reliability and noise levels.
• CellarPro cooling unit options: Choose between the 1800QT-HE and 1800XT-HE based on the room's thermal load. The 1800QT-HE is the quietest option. Review the Cooling Unit Selection Guide before ordering.

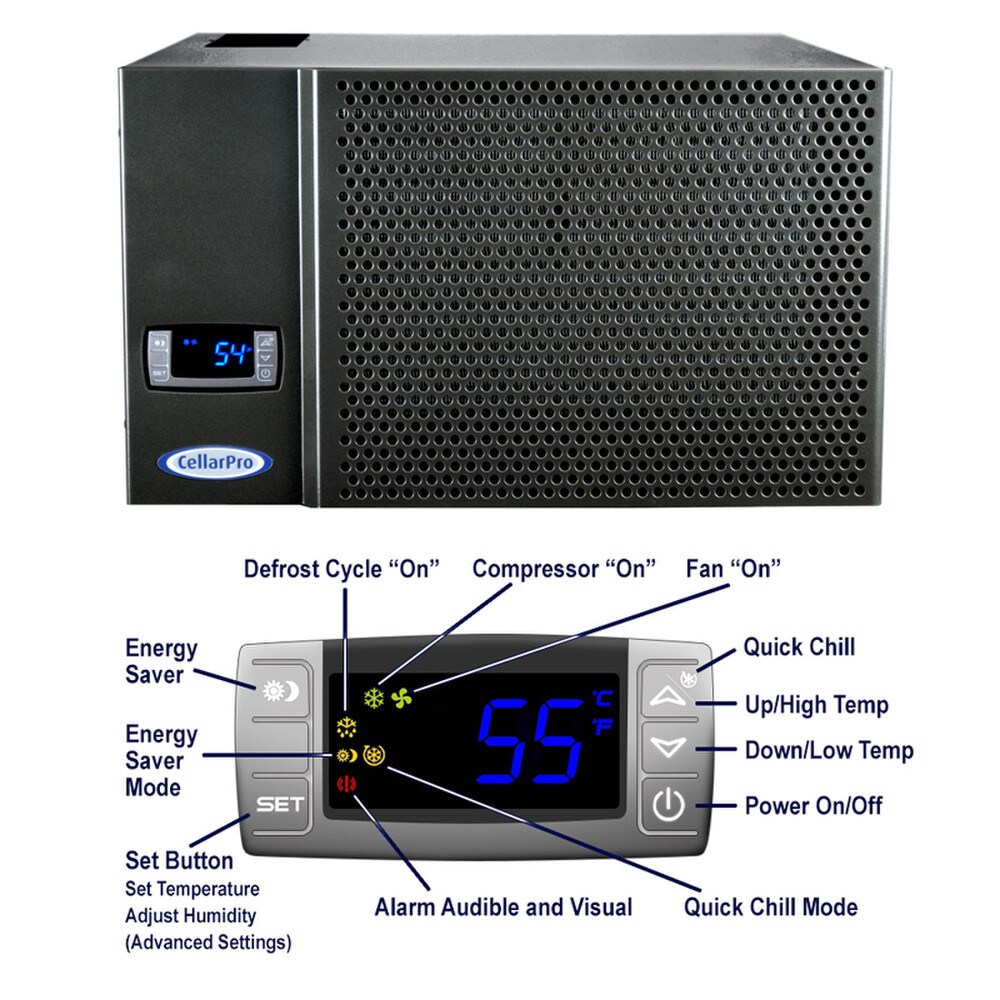

• Energy-Saver and Quick-Chill modes: Energy-Saver reduces compressor run time during stable conditions; Quick-Chill accelerates cooling after a large restock. Both are accessible via the front digital display without opening the cabinet.
• Audible and visual temperature alarms notify you of out-of-range conditions without requiring a connected app or external monitor.
• Stainless bar pull with keyed security lock on each door. Warranty is 5 years on the cooling unit and 2 years on the cabinet, with an optional extended warranty available.

Pairs Well With

• The optional bottle probe accessory, which provides a direct internal bottle temperature reading rather than air temperature - relevant if you are aging wines that require tight thermal monitoring.
• The optional extended warranty, particularly if the cabinet will be in a second home or basement where ambient conditions are less controlled and service calls are less convenient.

Brand: Le Cache

UPC: 077757369582

Size: 40 1/4w x 28 3/4d x 84 1/4w (in)

Capacity: 286 bottles
Double-Deep Storage
Racked Slots: 256 bottles (3 3/4-inch Slots)
Bulk Space: approximately 30 bottles (stacked)

Material: Cherry

Power/Rating:
115V AC / 60 Hz
Running / Startup Amps (compressor)
- CellarPro 1800QT-HE: 2.9 Amps / 20.1 Amps
- CellarPro 1800XT-HE: 3.0 Amps / 20.1 Amps
Thermal Load Calculations

Warranty:
2 Years (Cabinet) / 5 Years (Cooling Unit)
Optional Extended Warranty

Resources

• Owner's Manual
• Cooling Unit Selection Guide
• Placement Requirements
• Wine Cabinet Delivery & Inspection Instructions
• Wine Cabinet Filter: Top View
• Top View Drawings
• Adjustable Humidity Performance Chart
• Wine Cabinet Monthly Operating Cost
• Cooling Unit Sound Performance
• Watch Product Video

What These Specs Mean

• Running vs. Startup Amps: Running amps reflect the unit's electrical draw during normal operation. Startup amps reflect the brief increase in current when the compressor starts. Refer to the cooling unit installation instructions for circuit requirements.
• Cooling Unit Options: The CellarPro 1800QT-HE is the quietest available option. Other compatible models provide additional cooling capacity for installations with higher thermal loads. Use the Cooling Unit Selection Guide to identify the correct model for the installation conditions.

PLACEMENT & VENTILATION

Before choosing a location for your Le Cache wine cabinet, make sure the installation meets the following requirements.

BASIC PLACEMENT REQUIREMENTS

• Power: Standard grounded outlet on a dedicated circuit
• Room Temperature: 50–95°F
• Floor: Hard, level surface capable of supporting the fully loaded cabinet
• Door Clearance: Allow approximately 1 inch of additional width in front of the cabinet for the doors to open 90°
• Ventilation: Requirements vary depending on the cabinet and cooling configuration

VENTILATION REQUIREMENTS

Proper ventilation is essential. The cooling unit exhausts warm air, which must be able to dissipate without being drawn back into the unit. Poor ventilation can prevent the cabinet from reaching the desired temperature and may cause the cooling unit to overheat or run continuously.

SUMMARY

1. UPRIGHT CABINET / TOP-VENTED

Our upright wine cabinets with top-vented cooling are designed so the cabinet can be placed directly against the rear wall.

Warm air exhausts through the top of the cabinet, while return air enters from above. Sufficient clearance above and around the cabinet is therefore required.

Minimum clearance above the cabinet:

• 18 inches: Contemporary, Carolina, Loft, Vault and Semi-Custom wine cabinets
• 12 inches: European Country, Mission and Gallery wine cabinets

Important: The sides of the cabinet must remain open so that warm air can dissipate. Top-vented upright cabinets should not be placed in a corner, enclosed space, alcove or closet unless a Front-Vent Hood is used.

2. UPRIGHT CABINET / REAR-VENTED

Upright wine cabinets can also be configured with rear-vented cooling, with return air entering from behind the cabinet. This configuration is useful when sufficient clearance above the cabinet is not available.

Requirements:

• The cabinet must be positioned 3–4 inches away from the rear wall.
• If the rear of the cabinet is not accessible, allow at least 7 1/2 inches above the cabinet so the cooling-unit air filter can be removed and replaced.
• If the rear of the cabinet is accessible, allow at least 3 inches above the cabinet for airflow. We also recommend an air deflector to direct warm exhaust air to the left of the cabinet.

Important: The sides of the cabinet must remain open. Rear-vented upright cabinets should not be placed in a corner, enclosed space, alcove or closet unless a Front-Vent Hood is used.

3. UPRIGHT CABINET / TOP-VENTED + FRONT-VENT HOOD

A Front-Vent Hood can be added to a top-vented upright cabinet when:

• The cabinet will be placed flush against the rear wall but does not have the required clearance above for a standard top-vented installation
• The cabinet will be installed in an alcove, closet or other enclosed space

Allow at least 7 1/2 inches above the cabinet for removal of the hood and air filter.

Compatibility:

• Contemporary, Loft and Vault: The Front-Vent Hood may be used with or without the decorative grille.
• European Country, Mission, Carolina and Gallery: The Front-Vent Hood may be used without the decorative grille. The grille will not fit with the crown moldings.

4. CREDENZA

Credenzas do not require clearance above the cabinet; however, because both intake and exhaust ventilation occur behind the cabinet, credenzas require 3–4 inches of clearance behind the cabinet, and the sides must remain open for proper ventilation.

POWER REQUIREMENTS

The cooling unit plugs into a standard grounded wall outlet. The power cord extends approximately 6 1/2 feet from the rear of the cabinet.

The outlet must be on a dedicated circuit. The cooling unit components draw 3 amps, and the electrical outlet on the side of the cooling unit is also rated for 3 amps.

Do not share the circuit with another motor- or compressor-driven appliance such as a refrigerator, wine cooler, air conditioner or garage door opener.

We recommend using a surge protector rated for at least 15 amps to protect the cooling unit from power surges.

If an extension cord is necessary, use a grounded cord with 14-gauge wire or heavier, and keep it as short as possible.

FLOOR & WEIGHT REQUIREMENTS

A fully loaded wine cabinet is extremely heavy. Make sure the floor can support the combined weight of the cabinet and wine.

The cabinet should also be placed on a hard, level surface. On thick carpeting, the cabinet may settle unevenly over time, which can affect door alignment.

If installing on thick carpet, place a carpet board beneath the cabinet. You may purchase one from Le Cache or have a local hardware store cut a 3/4-inch plywood board to the width x depth of the cabinet.

DOOR SWING CLEARANCE

When opened to 90 degrees, the doors extend approximately 1 inch beyond the width of the cabinet.

For cabinets without moldings, allow for this additional space when planning the installation. The extra clearance is required in front of the cabinet for the doors to open fully.

BOTTLE CAPACITY

Please note:
(1) We count the top of the racks as 1 row when counting rows in our racks.
(2) Every slot in the racks is 3 3/4" and sized to fit oversized Burgundy and most Champagne-size bottles.
(3) Bulk storage is located atop the racks (except for the first row atop the racks). Bulk storage capacity is based on Bordeaux-size bottles.
(4) Total capacity is the sum of racked plus bulk capacity, with double-deep storage in all cases except the Contemporary Credenza (which is single-deep). Usable capacity may be lower by 2-3 bottles when the first few cells under the cooling unit are left empty for proper air circulation.
