Le Cache Loft 2400 Built In #2334
Get free inside delivery to a ground floor within the continental USA for a limited time. Terms Apply. Use Code 23FSCAB.
Overview
NOW WITH THE MOST ADVANCED AND QUIETEST COOLING UNITS FROM CELLARPRO!
Designed to be built in, this wine cabinet is perfect for sophisticated wine collectors seeking simplicity and style, and ideally suited for modern dwellings.
Total Capacity: 286 bottles
Size: 39w x 29d x 89h (in)
Details
TEMPERATURE & HUMIDITY CONTROL

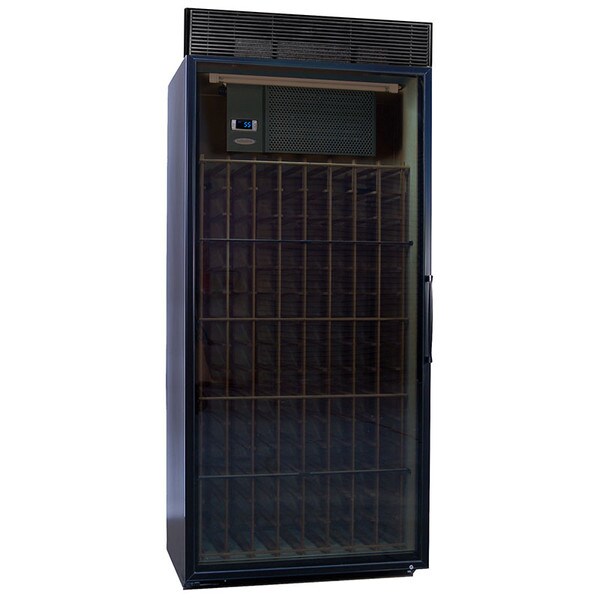

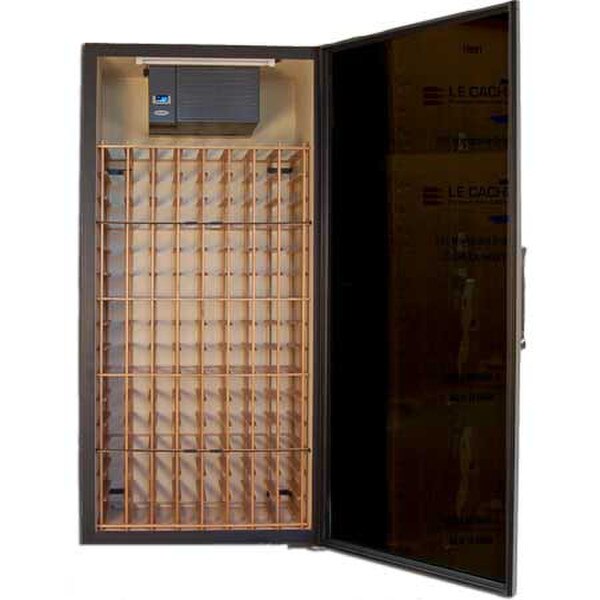

Le Cache Loft 2400 Wine Cabinet (P/N 2334). Featuring total storage for 286 bottles, including racked storage for 256 bottles and bulk storage for 30 bottles, our 2400 Series wine cabinets are sized for small spaces. Storage Cost per Bottle: $37
Le Cache wine cabinets maintain ideal temperature and humidity conditions for long term storage and aging of fine wines. Wine cabinets are different than wine coolers and refrigerators, which don't don't manage humidity conditions and therefore aren't recommended for long term storage of wine.
Design: Designed for sophisticated wine collectors seeking simplicity and style, our Loft Series is ideally suited for modern dwellings. The tinted double-paned glass door is framed to showcase fine wine collections in their entirety. This wine cabinet is designed to be placed in a closet or enclosed space, includes our front-vent hood and grill and is designed to be built-in.
Key features include:
Construction: Sealed seams, premium insulation and tinted double-paned glass provide thermal and UV protection

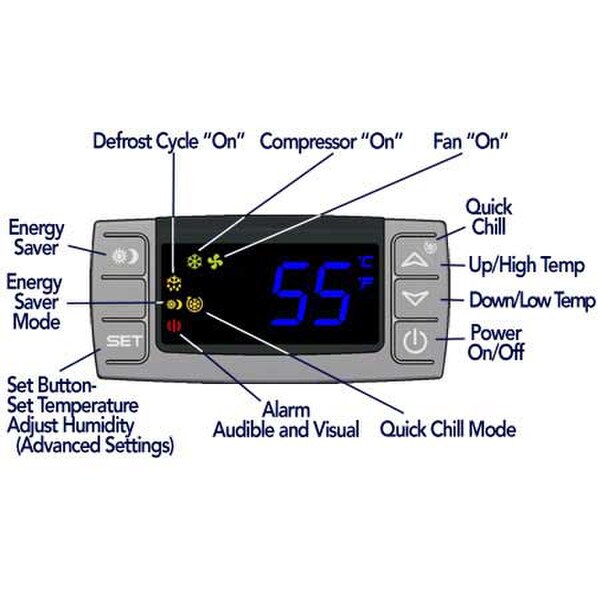

Refrigeration: Advanced CellarPro cooling units provide digital temperature and humidity control.
Le Cache Loft 2400 Wine Cabinet (P/N 2334). Featuring total storage for 286 bottles, including racked storage for 256 bottles and bulk storage for 30 bottles, our 2400 Series wine cabinets are sized for small spaces. Storage Cost per Bottle: $37
Le Cache wine cabinets maintain ideal temperature and humidity conditions for long term storage and aging of fine wines. Wine cabinets are different than wine coolers and refrigerators, which don't don't manage humidity conditions and therefore aren't recommended for long term storage of wine.
Design: Designed for sophisticated wine collectors seeking simplicity and style, our Loft Series is ideally suited for modern dwellings. The tinted double-paned glass door is framed to showcase fine wine collections in their entirety. This wine cabinet is designed to be placed in a closet or enclosed space, includes our front-vent hood and grill and is designed to be built-in.
Key features include:
- Tinted double-paned glass door
- Sealed seams and premium insulation

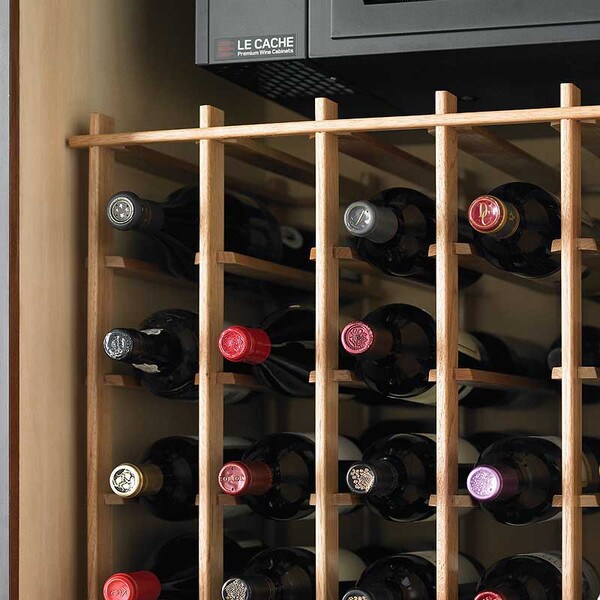

- All-wood Universal racking easily accommodates large-format wine bottles (including most Champagne bottles)

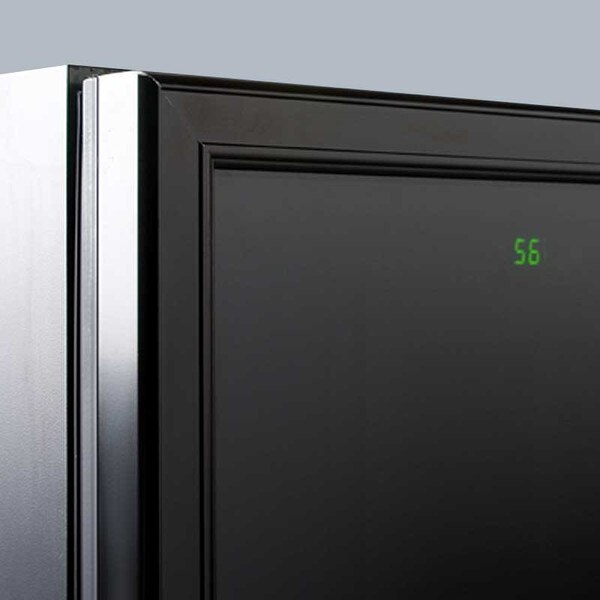

- The door can be hinged on either side, and is available in a choice of black matte or satin silver finishes
Construction: Sealed seams, premium insulation and tinted double-paned glass provide thermal and UV protection
Refrigeration: Advanced CellarPro cooling units provide digital temperature and humidity control.
Features
- Aluminum door
- Double-pane tinted glass
- Black laminate exterior
- Foil-backed polyisocyanurate insulation
- CellarPro energy-efficient cooling unit (made in USA)
- All-wood Interlock racks
- 5-year warranty on the cooling system
- 2-year warranty on entire cabinet
Configurations
COOLING UNIT OVERVIEW
Loft wine cabinets from Le Cache come with a choice of 2 CellarPro cooling units included in the price of the wine cabinet. The 2 CellarPro cooling units are dimensionally sized exactly alike, and therefore they are interchangeable. However, the 2 cooling units differ in terms of their BTUH cooling output and the level of noise that they produce. Each of the 2 cooling units is discussed below.
For more information about sizing the best cooling unit for your cabinet, refer to our Cooling Unit Buying Guide for Wine Cabinets.
CELLARPRO 1800QT-ECX
The 1800QT-ECX cooling unit is designed for residential use in a temperature-controlled environment. The 1800QT-ECX easily can maintain 55F in our largest wine cabinets.
This unit can be used with our front duct hood.
Key Stats: 1380 BTUH at 55F, 45 dbA installed in a cabinet.
CELLARPRO 1800XT-ECX
The 1800XT-ECX is approximately 5% more powerful and 3 decibels louder than The 1800QT-ECX cooling unit, because it uses more powerful fans. As a result, the 1800XT-ECX is ideally suited for garage environments (with temperatures ranging from 40F to 95F), commercial environments (where the cellar is frequently accessed) and installations with our front-duct hood..
Key Stats: 1456 BTUH at 55F, 48 dbA installed in a cabinet.
Loft wine cabinets from Le Cache come with a choice of 2 CellarPro cooling units included in the price of the wine cabinet. The 2 CellarPro cooling units are dimensionally sized exactly alike, and therefore they are interchangeable. However, the 2 cooling units differ in terms of their BTUH cooling output and the level of noise that they produce. Each of the 2 cooling units is discussed below.
For more information about sizing the best cooling unit for your cabinet, refer to our Cooling Unit Buying Guide for Wine Cabinets.
CELLARPRO 1800QT-ECX
The 1800QT-ECX cooling unit is designed for residential use in a temperature-controlled environment. The 1800QT-ECX easily can maintain 55F in our largest wine cabinets.
This unit can be used with our front duct hood.
Key Stats: 1380 BTUH at 55F, 45 dbA installed in a cabinet.
CELLARPRO 1800XT-ECX
The 1800XT-ECX is approximately 5% more powerful and 3 decibels louder than The 1800QT-ECX cooling unit, because it uses more powerful fans. As a result, the 1800XT-ECX is ideally suited for garage environments (with temperatures ranging from 40F to 95F), commercial environments (where the cellar is frequently accessed) and installations with our front-duct hood..
Key Stats: 1456 BTUH at 55F, 48 dbA installed in a cabinet.
Specs & Resources
Brand: Le Cache
Size: 39w x 29d x 89h (in)
Weight: 385 lbs
Power/Rating:
115V AC / 60 Hz
Running / Startup Amps (compressor)
- CellarPro 1800QTL-ECX: 2.4 Amps / 14.2 Amps
- CellarPro 1800QT-ECX: 2.9 Amps / 20.1 Amps
- CellarPro 1800XT-ECX: 3.0 Amps / 20.1 Amps
Thermal Load Calculations
Capacity: 286 bottles
Double Deep storage
Racked Slots: 256 bottles (3.8 inch slots)
Bulk Space: approximately 30 bottles (stacked)
Material: Melamine Laminate
Warranty:
2 Years (Cabinet) / 5 Years (Cooling Unit)
Optional Extended Warranty
Click on one of the following links for more information:
Size: 39w x 29d x 89h (in)
Weight: 385 lbs
Power/Rating:
115V AC / 60 Hz
Running / Startup Amps (compressor)
- CellarPro 1800QTL-ECX: 2.4 Amps / 14.2 Amps
- CellarPro 1800QT-ECX: 2.9 Amps / 20.1 Amps
- CellarPro 1800XT-ECX: 3.0 Amps / 20.1 Amps
Thermal Load Calculations
Capacity: 286 bottles
Double Deep storage
Racked Slots: 256 bottles (3.8 inch slots)
Bulk Space: approximately 30 bottles (stacked)
Material: Melamine Laminate
Warranty:
2 Years (Cabinet) / 5 Years (Cooling Unit)
Optional Extended Warranty
Click on one of the following links for more information:
- Owner's Manual
- Cooling Unit Selection Guide
- Placement Requirements
- Wine Cabinet Delivery & Inspection Instructions
- Wine Cabinet Filter: Top View
- Top View Drawings
- Adjustable Humidity Performance Chart
- Wine Cabinet Monthly Operating Cost
- Cooling Unit Sound Performance - this cabinet includes our 1800XT-ECX and our front-vent hood, which will generate sound levels equivalent to the 1800QTL-ECX
Placement Requirements
PLACEMENT REQUIREMENTS
POWER REQUIREMENT:
The cooling unit plugs into a standard wall outlet, and the outlet should be on a dedicated circuit. The components of the cooling unit draw 3 amps, and the electric outlet on the side of the cooling unit also is rated for 3 amps. The cord extends 6 1/2 feet from the back of the cabinet. If an extension cord is used, it should be 14-gauge wire or thicker, grounded, and as short as possible. We recommend using a surge protector rated at 15 amps or more. Under no circumstances should the wine cabinet share a circuit with another motor or compressor-based appliance, like a wine cooler, fridge or air conditioner.
FLOOR SURFACE:
Because of the significant weight of your wine cabinet, it is important that it be placed on a hard surface, otherwise the cabinet may become skewed if the doors settle unevenly over time. If you will be placing your cabinet on thick carpeting, consider placing a carpet board underneath the wine cabinet. You can purchase a carpet board from Le Cache, or you can have your local hardware store cut a 3/4 inch plywood board to the following dimensions: 26.5w x 25d
DOOR SWING CLEARANCE:
The doors of our wine cabinets swing "wide" by approximately 1 inch when open at 90 degrees. The additional width should be accounted for when purchasing cabinets that do not have moldings, because the stated widths of our wine cabinets do not account for the door swing. Please note that the additional width is required in front of the cabinet.
WEIGHT LOAD FACTOR:
After loading your wine cabinet with wine bottles, it will be extremely heavy. When selecting a location for your cabinet, make sure that the floor underneath is strong enough to support the weight of the cabinet.
TEMPERATURE REQUIREMENTS:
CellarPro cooling units are designed to handle temperatures ranging from 50 to 95F.
VENTILATION REQUIREMENTS:
The cooling unit generates hot air that, when combined with our front-vent hood, will be exhausted from the front of the wine cabinet
Our built-in configuration enables the placement of the wine cabinet flush against the wall in an enclosed space, closet or alcove, provided that at least 1 1/2 inches of clearance exists above the wine cabinet and hood for removal of the hood and the air filter.
POWER REQUIREMENT:
The cooling unit plugs into a standard wall outlet, and the outlet should be on a dedicated circuit. The components of the cooling unit draw 3 amps, and the electric outlet on the side of the cooling unit also is rated for 3 amps. The cord extends 6 1/2 feet from the back of the cabinet. If an extension cord is used, it should be 14-gauge wire or thicker, grounded, and as short as possible. We recommend using a surge protector rated at 15 amps or more. Under no circumstances should the wine cabinet share a circuit with another motor or compressor-based appliance, like a wine cooler, fridge or air conditioner.
FLOOR SURFACE:
Because of the significant weight of your wine cabinet, it is important that it be placed on a hard surface, otherwise the cabinet may become skewed if the doors settle unevenly over time. If you will be placing your cabinet on thick carpeting, consider placing a carpet board underneath the wine cabinet. You can purchase a carpet board from Le Cache, or you can have your local hardware store cut a 3/4 inch plywood board to the following dimensions: 26.5w x 25d
DOOR SWING CLEARANCE:
The doors of our wine cabinets swing "wide" by approximately 1 inch when open at 90 degrees. The additional width should be accounted for when purchasing cabinets that do not have moldings, because the stated widths of our wine cabinets do not account for the door swing. Please note that the additional width is required in front of the cabinet.
WEIGHT LOAD FACTOR:
After loading your wine cabinet with wine bottles, it will be extremely heavy. When selecting a location for your cabinet, make sure that the floor underneath is strong enough to support the weight of the cabinet.
TEMPERATURE REQUIREMENTS:
CellarPro cooling units are designed to handle temperatures ranging from 50 to 95F.
VENTILATION REQUIREMENTS:
The cooling unit generates hot air that, when combined with our front-vent hood, will be exhausted from the front of the wine cabinet
Our built-in configuration enables the placement of the wine cabinet flush against the wall in an enclosed space, closet or alcove, provided that at least 1 1/2 inches of clearance exists above the wine cabinet and hood for removal of the hood and the air filter.
Bottle Capacity
BOTTLE CAPACITY
Please note:
(1) We count the top of the racks as 1 row when counting rows in our racks.
(2) Every slot in the racks is 3 3/4" and sized to fit oversized Burgundy and most Champagne-size bottles.
(3) Bulk storage is located atop the racks (except for the first row atop the racks). Bulk storage capacity is based on Bordeaux-size bottles.
(4) Total capacity is the sum of racked plus bulk capacity, with double-deep storage in all cases except the Contemporary Credenza (which is single-deep). Usable capacity may be lower by 2-3 bottles when the first few cells under the cooling unit are left empty for proper air circulation.
| Bottle Capacity | |||||
| Model | Rows | Columns | Racked | Bulk | Total |
| 1400 | 14 | 6 | 160 | 12 | 172 |
| 2400 | 16 | 8 | 256 | 30 | 286 |
| 3100 | 16 | 10 | 320 | 48 | 368 |
| 3800 | 17 | 12 | 408 | 50 | 458 |
| 5200 | 17 | 16 | 544 | 78 | 622 |
| Credenza - Contemporary | 8 5 | 6 9 | 93 | 22 | 115 |
| Credenza - Euro & Mission | 7 5 | 5 8 | 150 | 30 | 180 |
Please note:
(1) We count the top of the racks as 1 row when counting rows in our racks.
(2) Every slot in the racks is 3 3/4" and sized to fit oversized Burgundy and most Champagne-size bottles.
(3) Bulk storage is located atop the racks (except for the first row atop the racks). Bulk storage capacity is based on Bordeaux-size bottles.
(4) Total capacity is the sum of racked plus bulk capacity, with double-deep storage in all cases except the Contemporary Credenza (which is single-deep). Usable capacity may be lower by 2-3 bottles when the first few cells under the cooling unit are left empty for proper air circulation.
Q&A
Does a built-in cabinet require space above or behind the cabinet?
Built-in cabinets using our front-vent hoods do not require space behind or to the sides of the cabinet. Above the cabinet, with the front-vent hood installed, an additional 1 1/2 inches of space is required to remove the front-vent hood so that the cooling unit condenser coils can be cleaned periodically, or the filter replaced. Click on our placement requirements tab for more information.
Does the unit really need a dedicated circuit?
A: Yes, our units require dedicated circuits. When we say "dedicated circuit", we mean that the circuit shouldn't have any items that require heavy draws of electricity - eg other appliances, vacuum cleaners, big-screen TVs, blow-dryers - on the same circuit as the cooling unit. Lighting, computers or other low-draw items shouldn't be a problem on the same circuit.
Do I need the condensate drain line?
A: You don't need the drain line because our wine cabinets are constructed to be airtight when the doors are closed, and the cooling unit has a drain pan to catch excess condensation, which is burned off as the cooling unit runs.
Why does the fan run without the compressor?
A: We've programmed our fans to stay "on" for 3 minutes after the compressor turns "off", and then every 15 minutes thereafter , to recirculate moisture inside the cabinet. This fan cycle is extremely energy efficient, and increases the humidity inside the cabinet.
Built-in cabinets using our front-vent hoods do not require space behind or to the sides of the cabinet. Above the cabinet, with the front-vent hood installed, an additional 1 1/2 inches of space is required to remove the front-vent hood so that the cooling unit condenser coils can be cleaned periodically, or the filter replaced. Click on our placement requirements tab for more information.
Does the unit really need a dedicated circuit?
A: Yes, our units require dedicated circuits. When we say "dedicated circuit", we mean that the circuit shouldn't have any items that require heavy draws of electricity - eg other appliances, vacuum cleaners, big-screen TVs, blow-dryers - on the same circuit as the cooling unit. Lighting, computers or other low-draw items shouldn't be a problem on the same circuit.
Do I need the condensate drain line?
A: You don't need the drain line because our wine cabinets are constructed to be airtight when the doors are closed, and the cooling unit has a drain pan to catch excess condensation, which is burned off as the cooling unit runs.
Why does the fan run without the compressor?
A: We've programmed our fans to stay "on" for 3 minutes after the compressor turns "off", and then every 15 minutes thereafter , to recirculate moisture inside the cabinet. This fan cycle is extremely energy efficient, and increases the humidity inside the cabinet.
